Performance
Receive coverage 3100–3700 MHz
uucck VRX-3301 3.3 GHz Video Receiver
$99.00
Skip to product information
uucck VRX-3301 3.3 GHz Video Receiver
$99.00
No batteries
DDP · 27 EU countries
Ships from Guangzhou
USD · retail checkout
Small orders · PayPal & cards

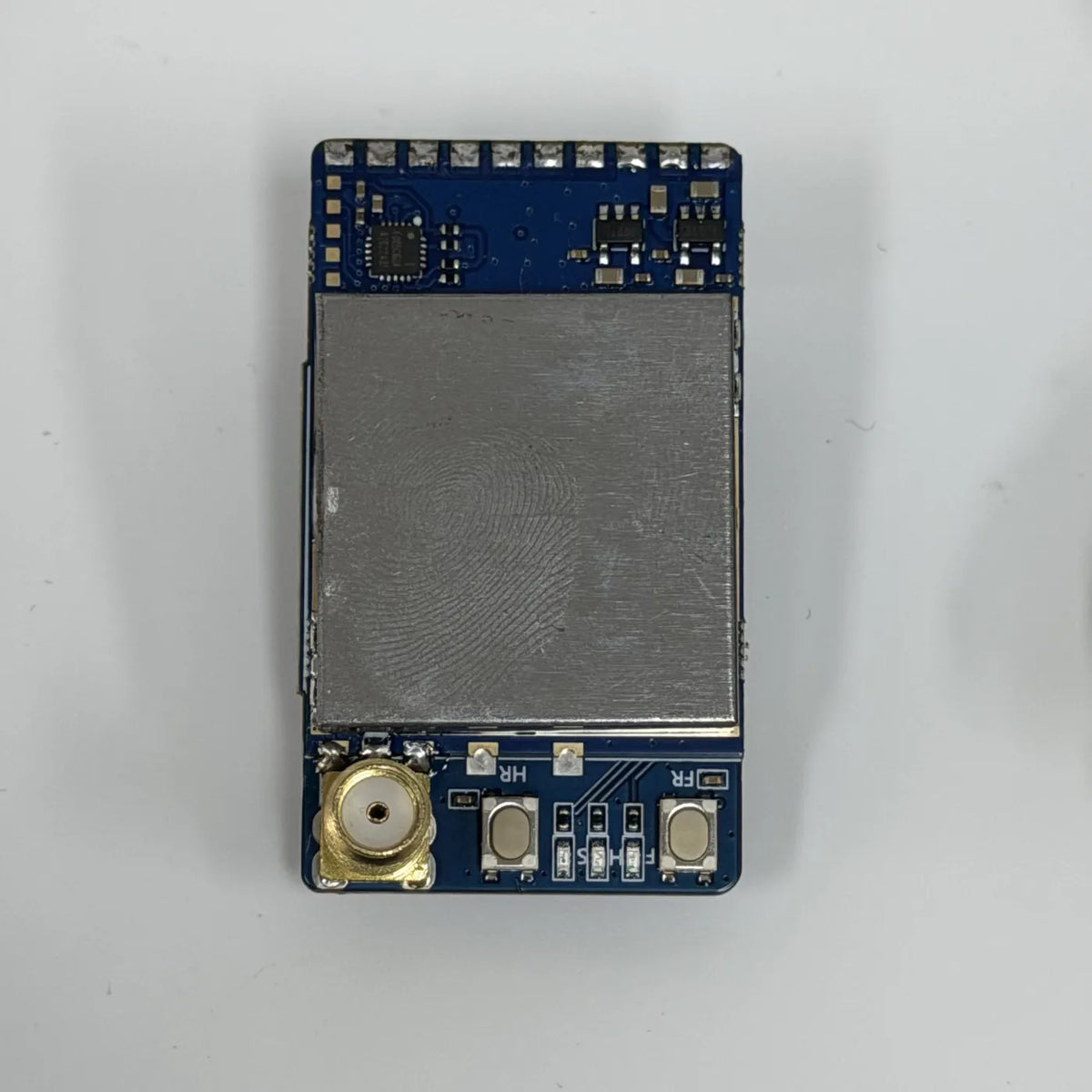

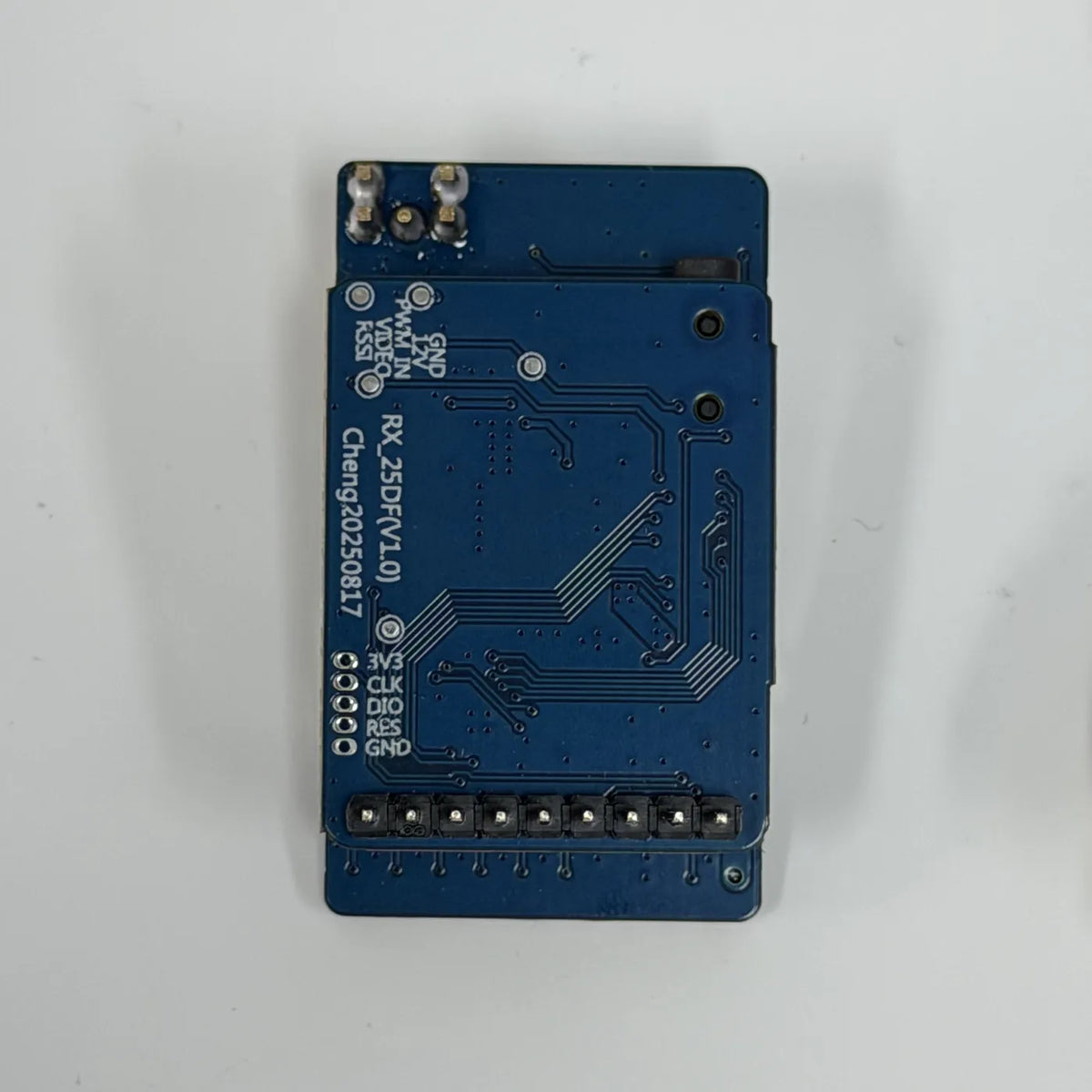

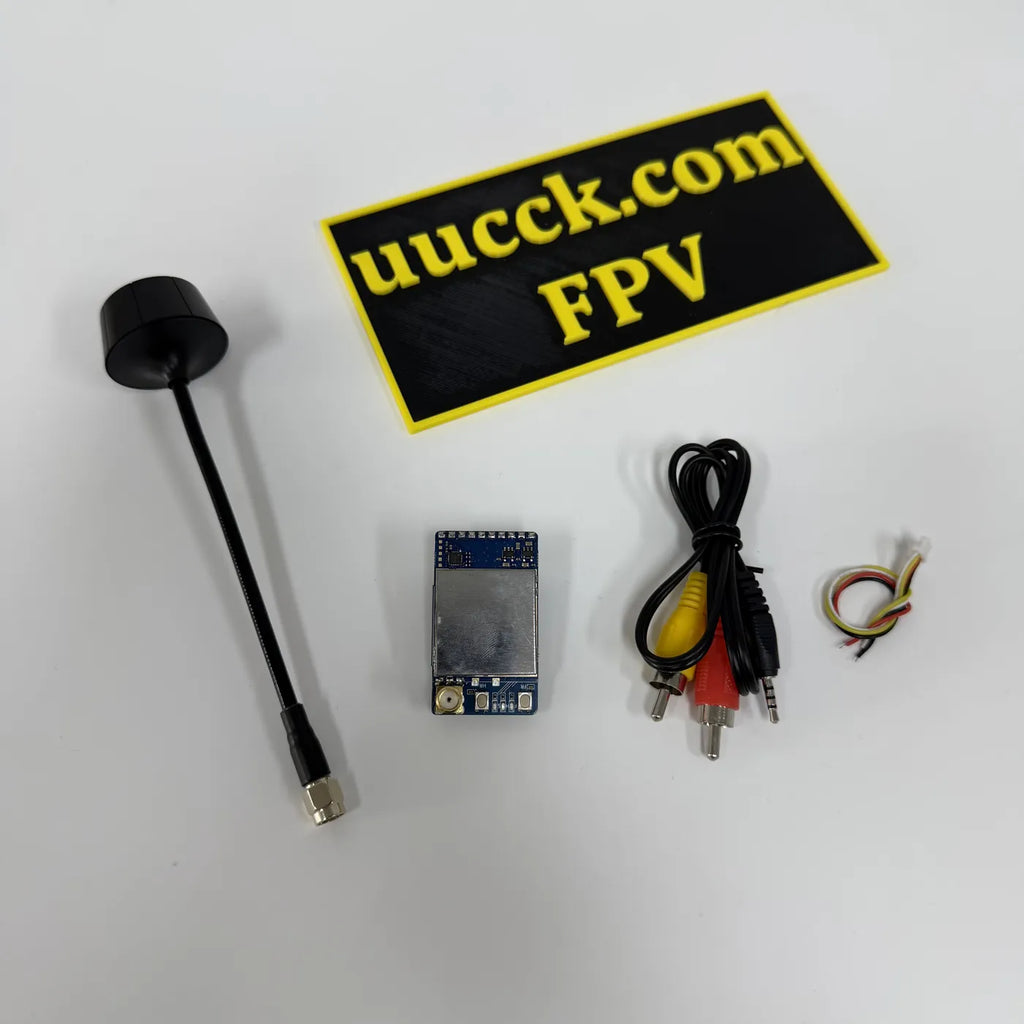

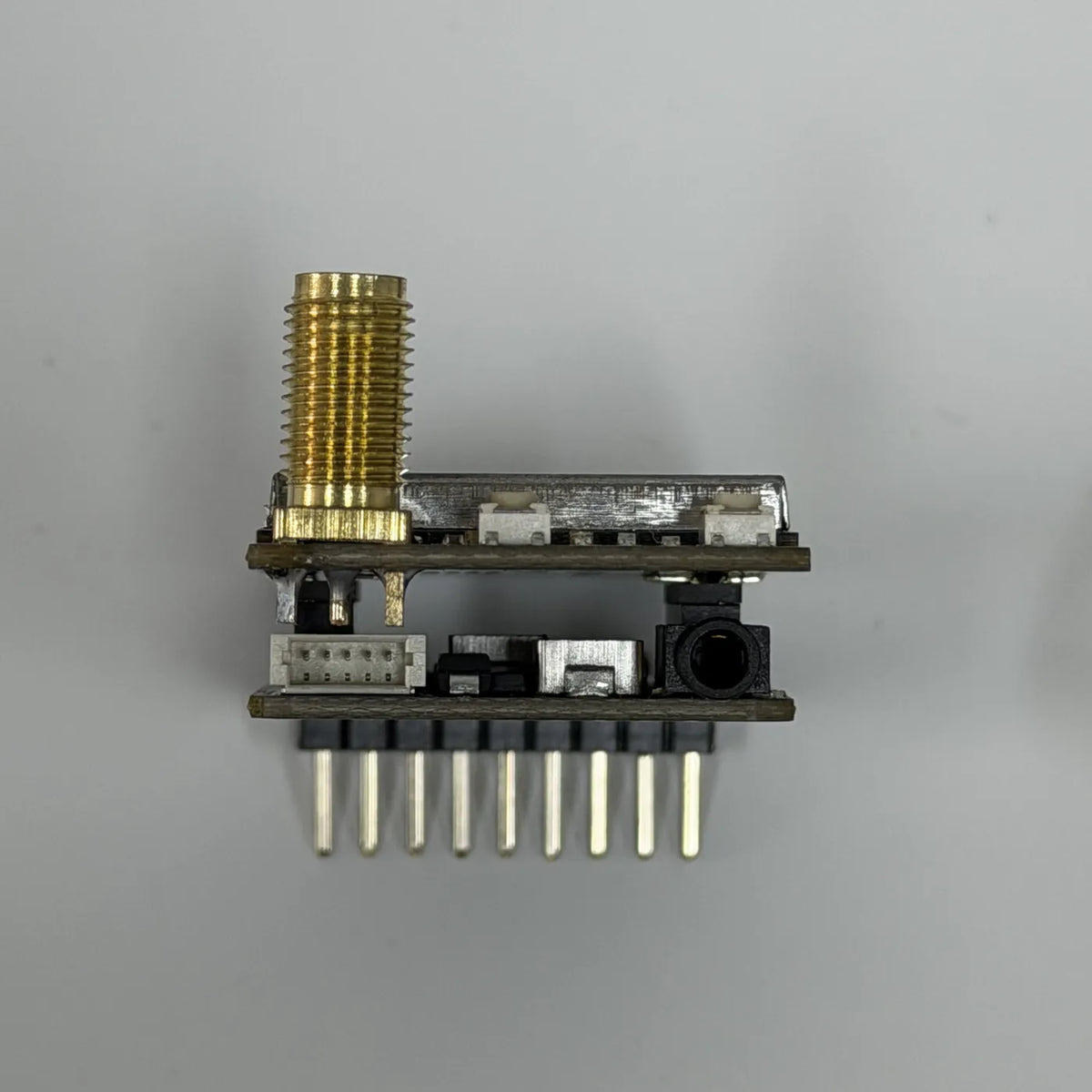

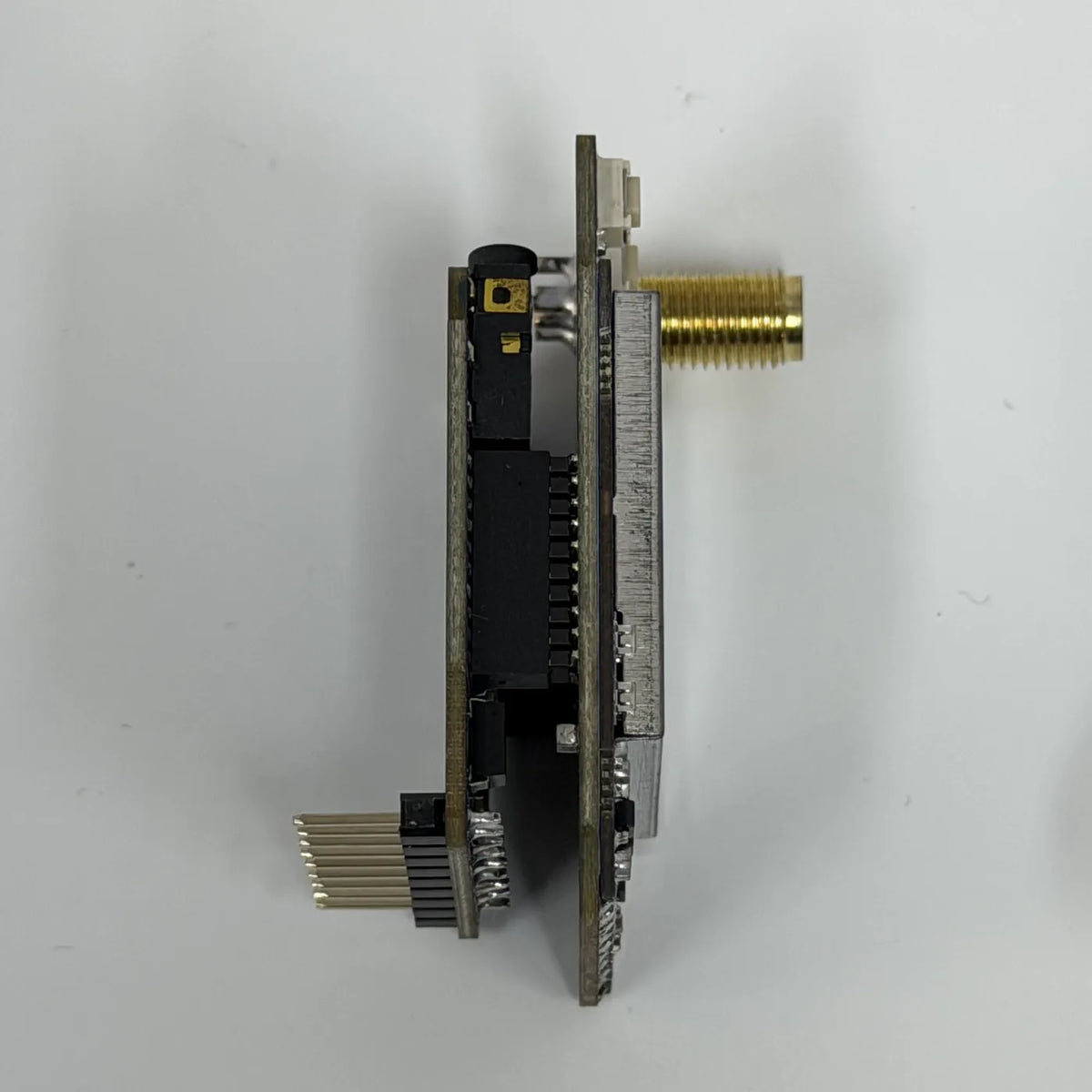

The uucck VRX-3301 is a 3.3 GHz analog receiver with auto-scan, CVBS output, wide 5–36 V input, and −95 dBm sensitivity.
Product overview
The uucck VRX-3301 is a wide-voltage 3.3 GHz receiver module with auto-scan, CVBS output, and RSSI for analog FPV ground stations and embedded installs.
Key features
- Key capabilityReceive coverage 3100–3700 MHz
- Key capabilitySensitivity −95 dBm; input range −95 to +5 dBm
- 5–36 V input, ≤250 mAsuitable for field power banks and aircraft bus
- Key capabilityAuto channel scan; HR/FR control on module face
Core advantages
Performance
Sensitivity −95 dBm; input range −95 to +5 dBm
5–36 V input, ≤250 mA
suitable for field power banks and aircraft bus
Performance
Auto channel scan; HR/FR control on module face
Target applications
- Ground stations and goggles receiving 3100–3700 (3.3 GHz) analog downlinks.
- Embedded DVR / monitor modules that need CVBS baseband video.
- Relay and companion receivers paired with uucck VTX on matching channel plans.
Technical specifications
RF & channels
Video & audio
Power & interfaces
Environment
Compatibility & pairing
Pair with uucck AL3304, AL3306, or other 3.3 GHz VTX on matching channel tables.
Setup & safety
Use HR/FR buttons or auto-scan on first link. Verify RSSI wiring if feeding an OSD or meter.
Regulatory notice
Transmit only on frequencies and power levels approved in your country. Always connect a matched antenna before applying power. uucck modules are intended for licensed hobby and professional users who comply with local RF rules.
FAQ
Who manufactures uucck VRX-3301?
uucck designs the product lineup and sells VRX-3301 at uucck.com. Technical data is verified against uucck engineering records (2026-10-17).
Analog or digital video?
This is analog FM CVBS — compatible with classic FPV goggles and monitors, not DJI HD digital links.
OEM model number VRX3301 vs VRX-3301?
Same module — supplier pages may omit the hyphen. uucck SKU uses VRX-3301 naming.
