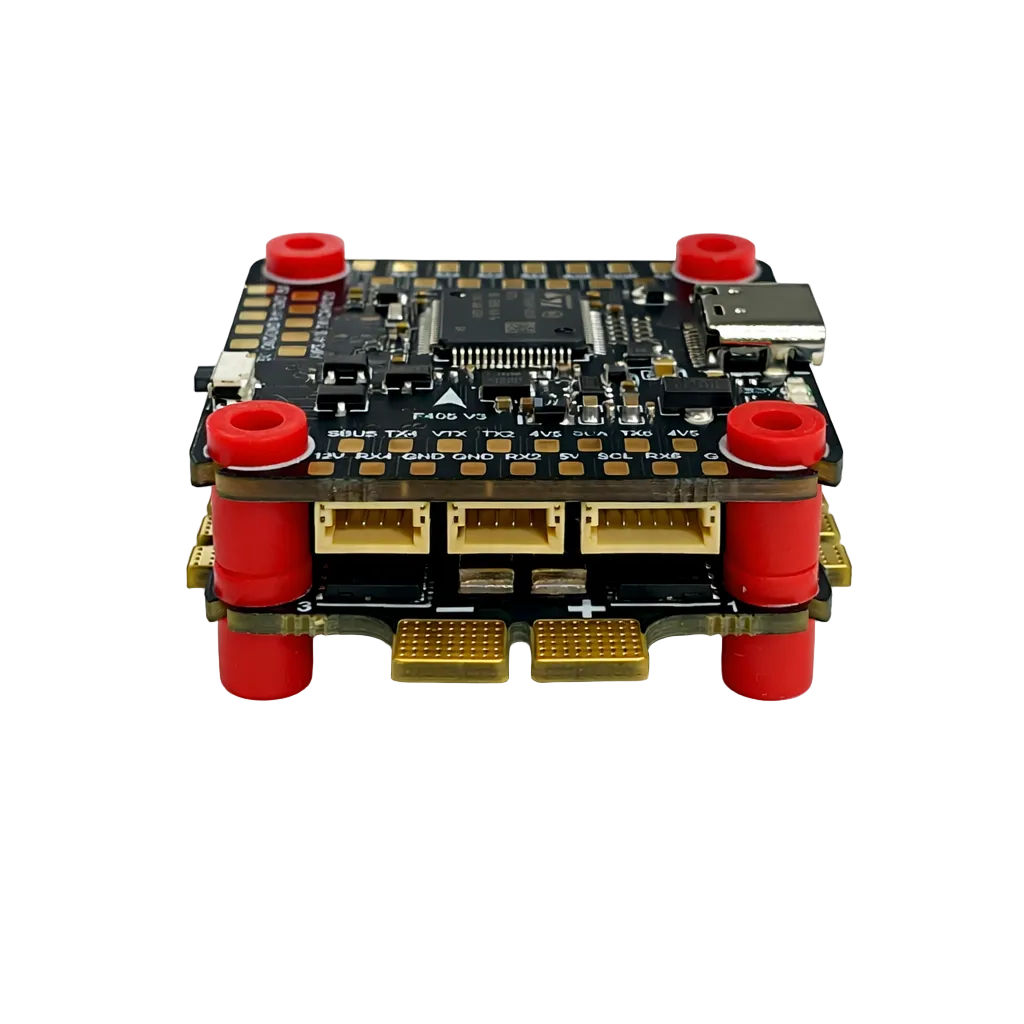

PY-ENERGY F405 V3 BLS 65A 4-in-1 ESC STACK
$500.00
Skip to product information
PY-ENERGY F405 V3 BLS 65A 4-in-1 ESC STACK
$500.00

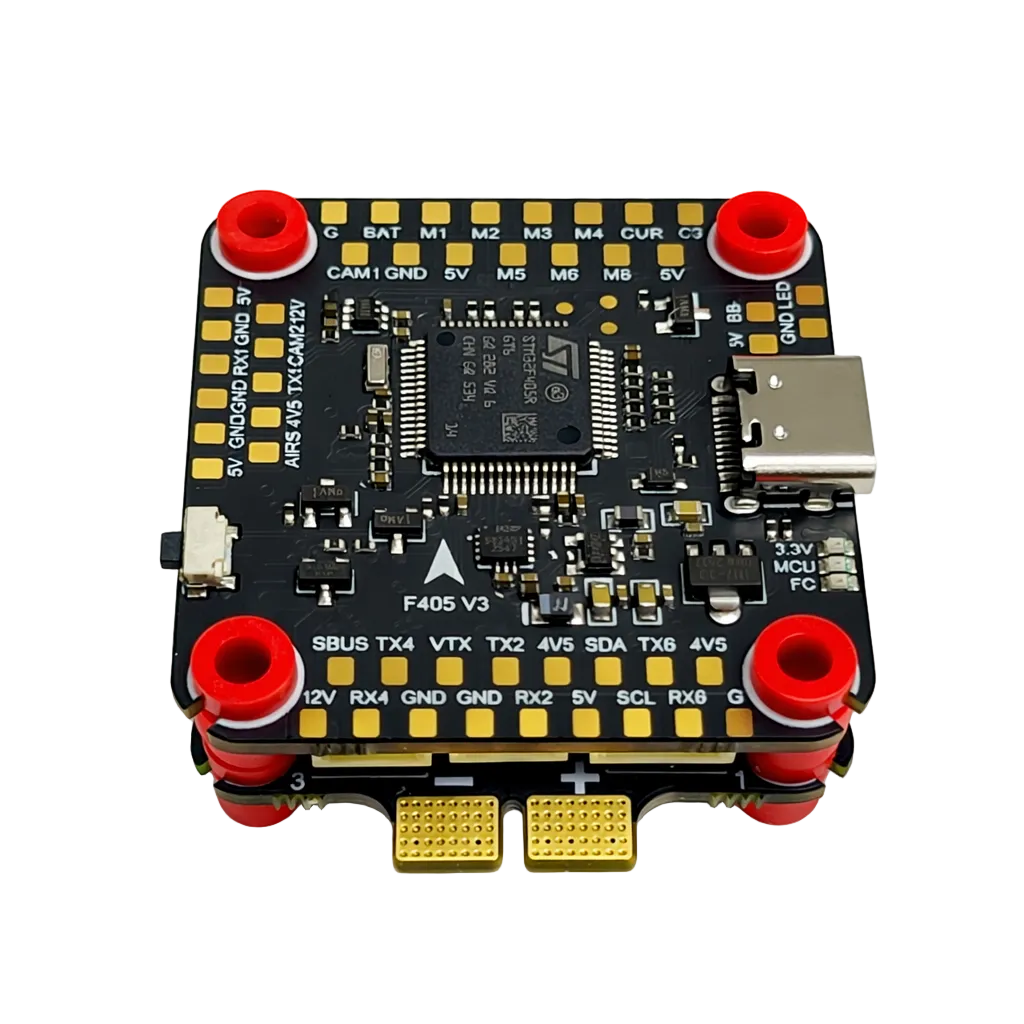

| FC Model | PY-ENERGY F405 V3 ICM42688 Flight Controller |
| MCU | STM32F405RGT6 |
| Supported firmware | Betaflight(default),INAV, ArduPilot |
| Input voltage | 3-8S LiPo |
| Gyroscope | ICM-42688 |
| OSD chip | AT7456E |
| Black box | 16M Flash Memory |
| Barometer | SPLO6 |
| GPS Interface | YES |
| Image transmission | YES |
| UART Serial Port | 6 |
| Telemetry input | R5(UART5) |
| Receiver | ELRS/CRSF/SBUS/Frsky/Futaba/Flysky/TBS Crossfre/DSMX |
| Signal output | 8CH |
| BEC output | 4.5V/1A5V/2.5A12V/2.5A |
| Buzzer | YES |
| USB Type | Type-C |
| PCB Color | Matte black |
| Fixed hole spacing | 30.5*30.5mm/Φ4mm |
| Size(L*W*H) | 39.8*38.7*8mm |
| Weight(g) | 9g |

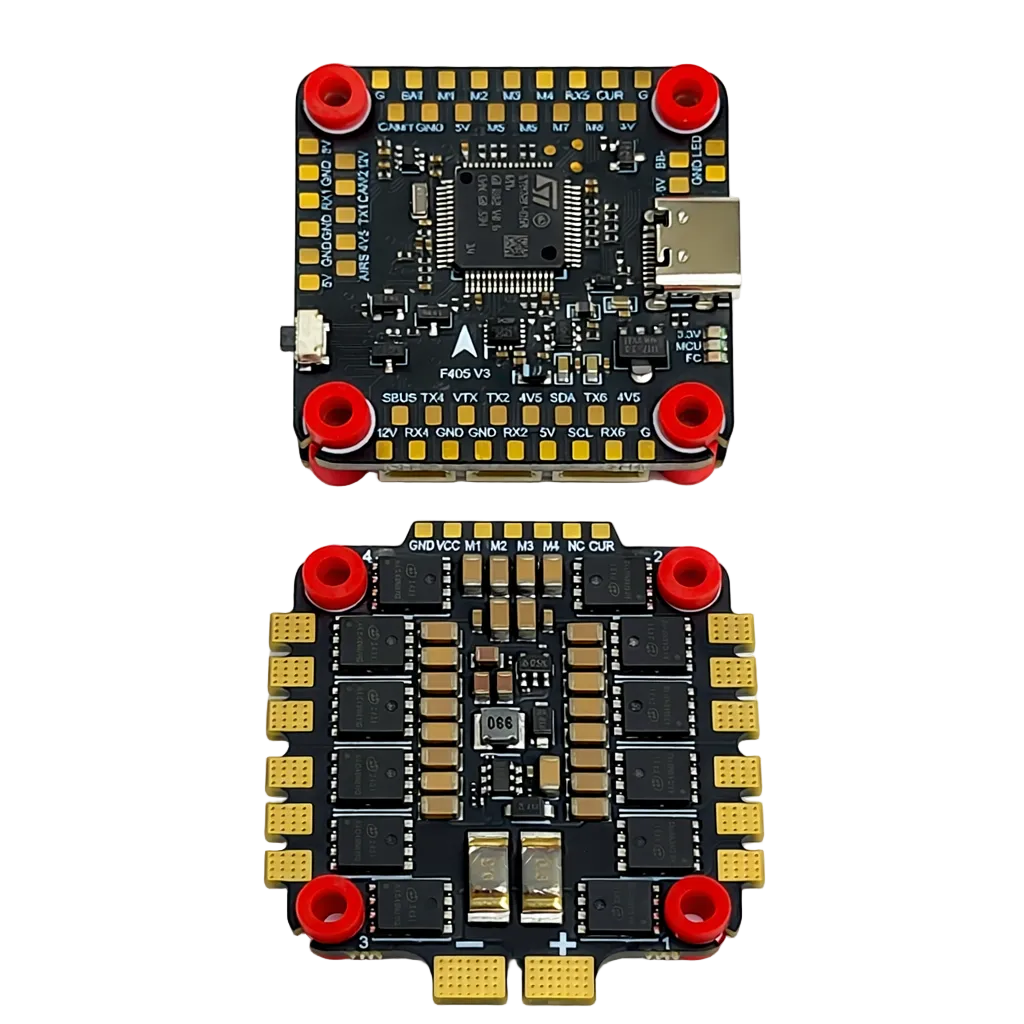

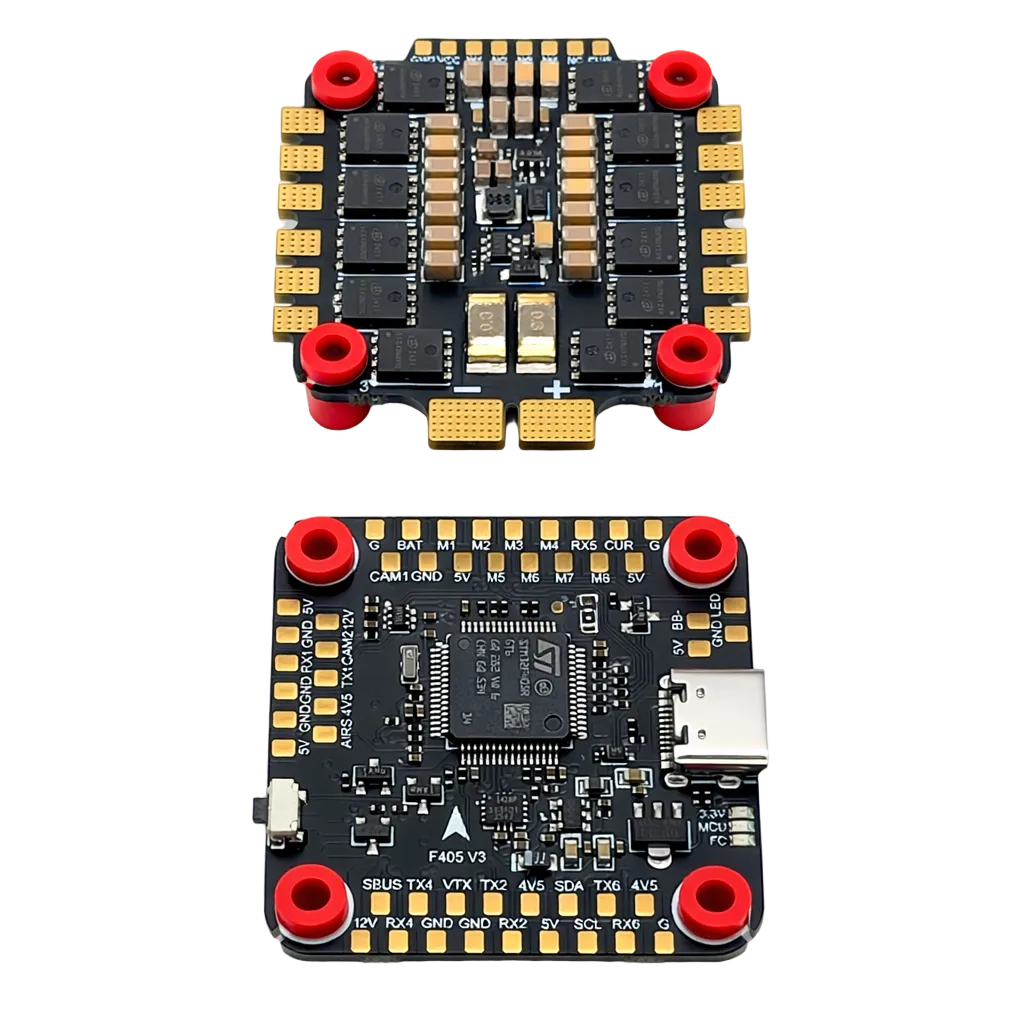

| ESC Model | PY-ENERGY BLS 65A 4-in-1 ESC |
| Product model | BLS 65A 4-in-1 ESC |
| Input voltage | 3-8S |
| MCU | EFM8BB51F16G |
| Support firmware | BLHeli_S E_X_40 (Default);Bluejay E_X_40 |
| Driver chip | CSC2388/SA6288/FD6288 |
| Continuous current | 65A |
| Instantaneous current | 75A |
| Standby current | <15mA |
| BEC output | NO BEC |
| TVS protective diode | YES |
| ESC/Motor Protocol | PWM、 Oneshot125、 Oneshot42、Multishot、Dshot150、Dshot300、Dshot600 |
| Ammeter ratio | 100 |
| PCB Color | Matte black |
| Fixed hole spacing | 30.5*30.5mm |
| Size(L*W*H) | 45.5*41.5*6.4mm |
| Weight(g) | 15g |
| Package | |
•F405 FC + BLHeli_32 4-in-1 ESC
•60A Continuous / High-efficiency power delivery
•30.5×30.5mm mounting • 6S compatible
