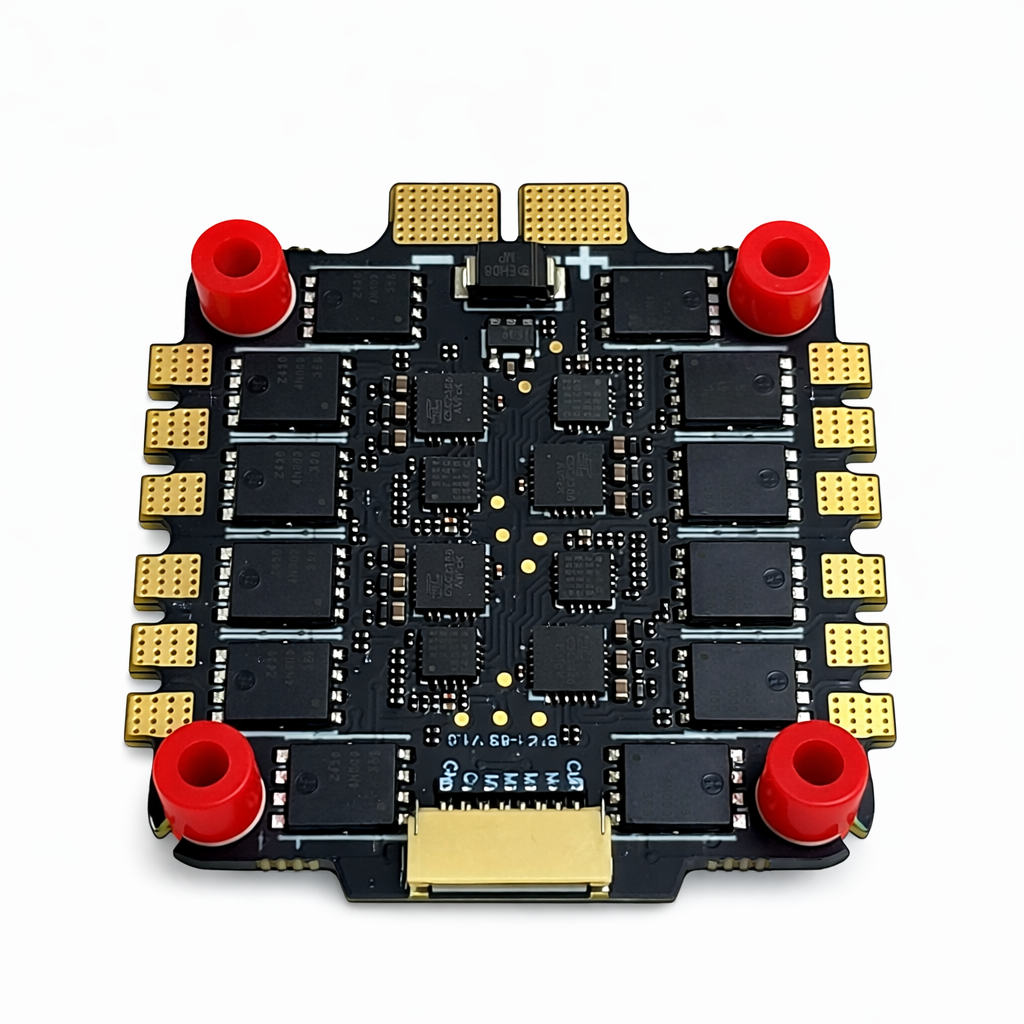

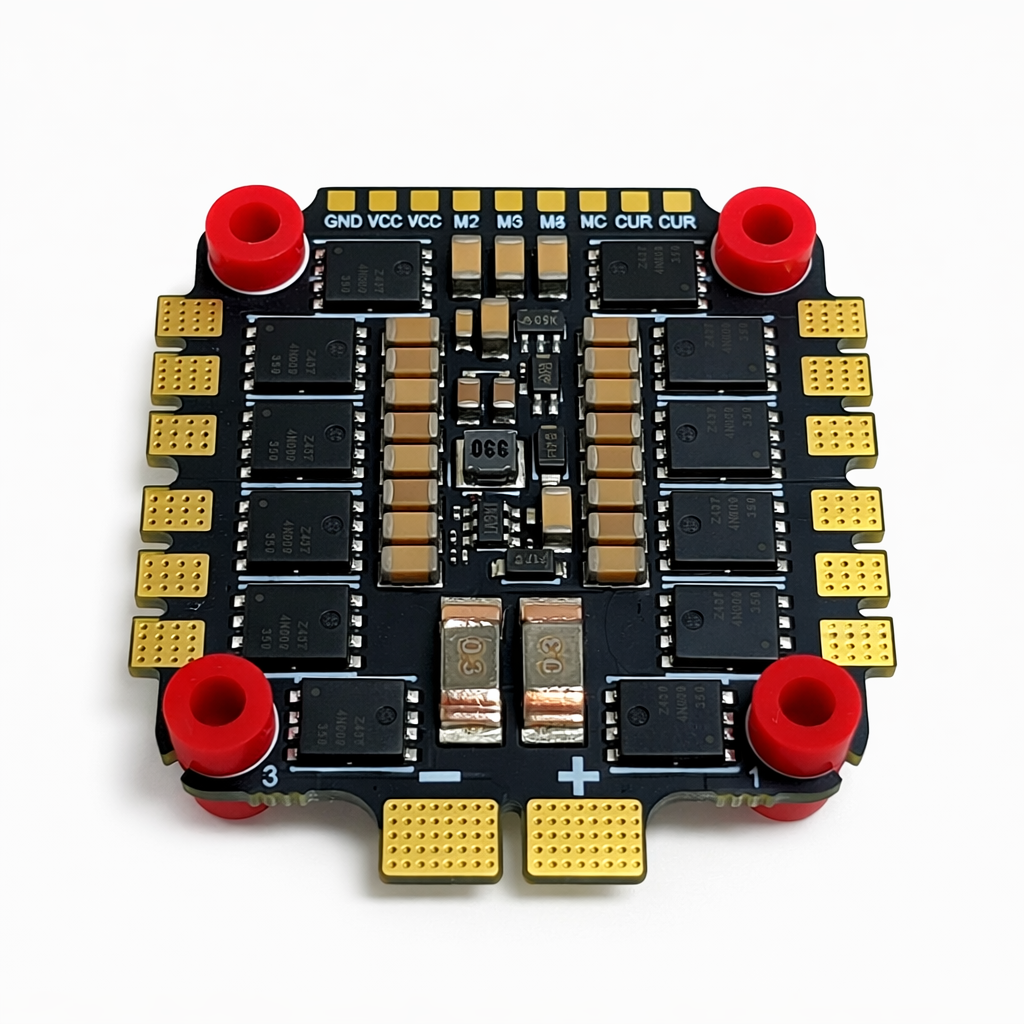

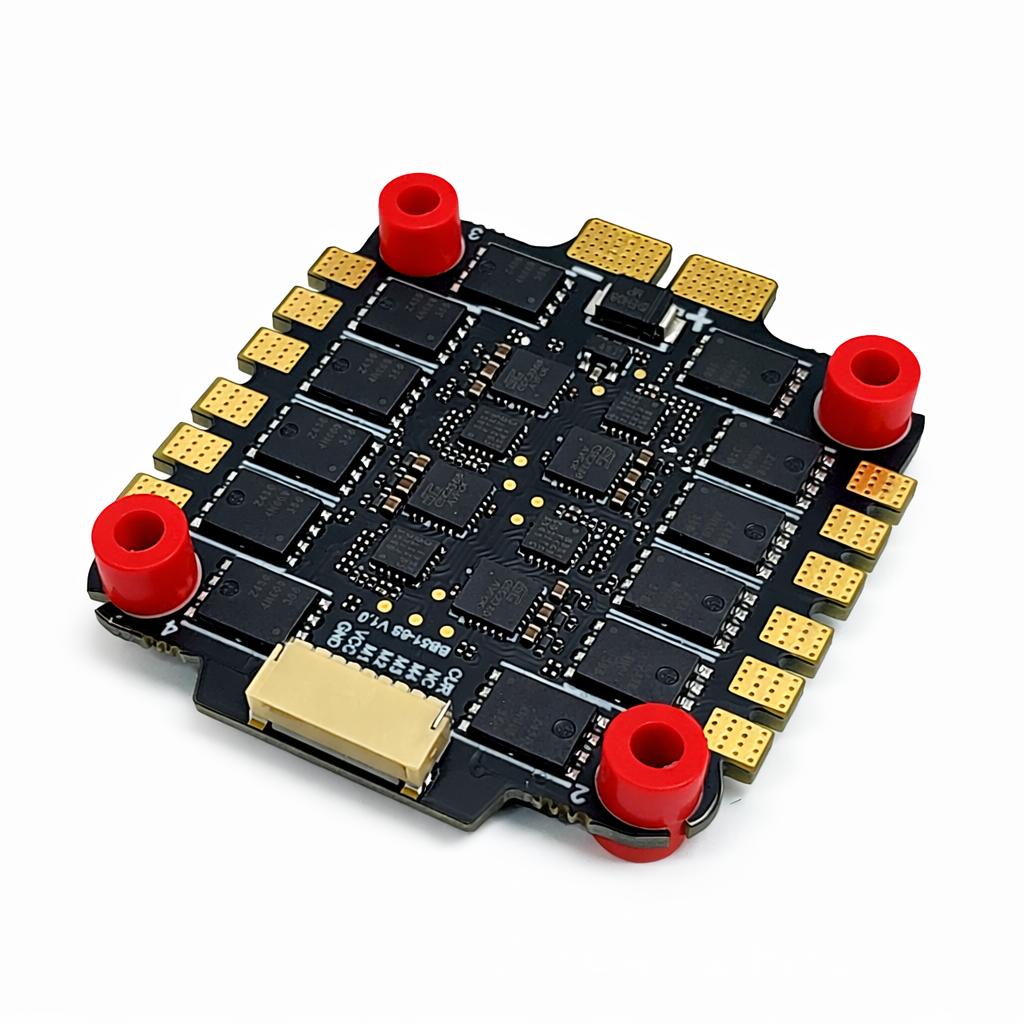

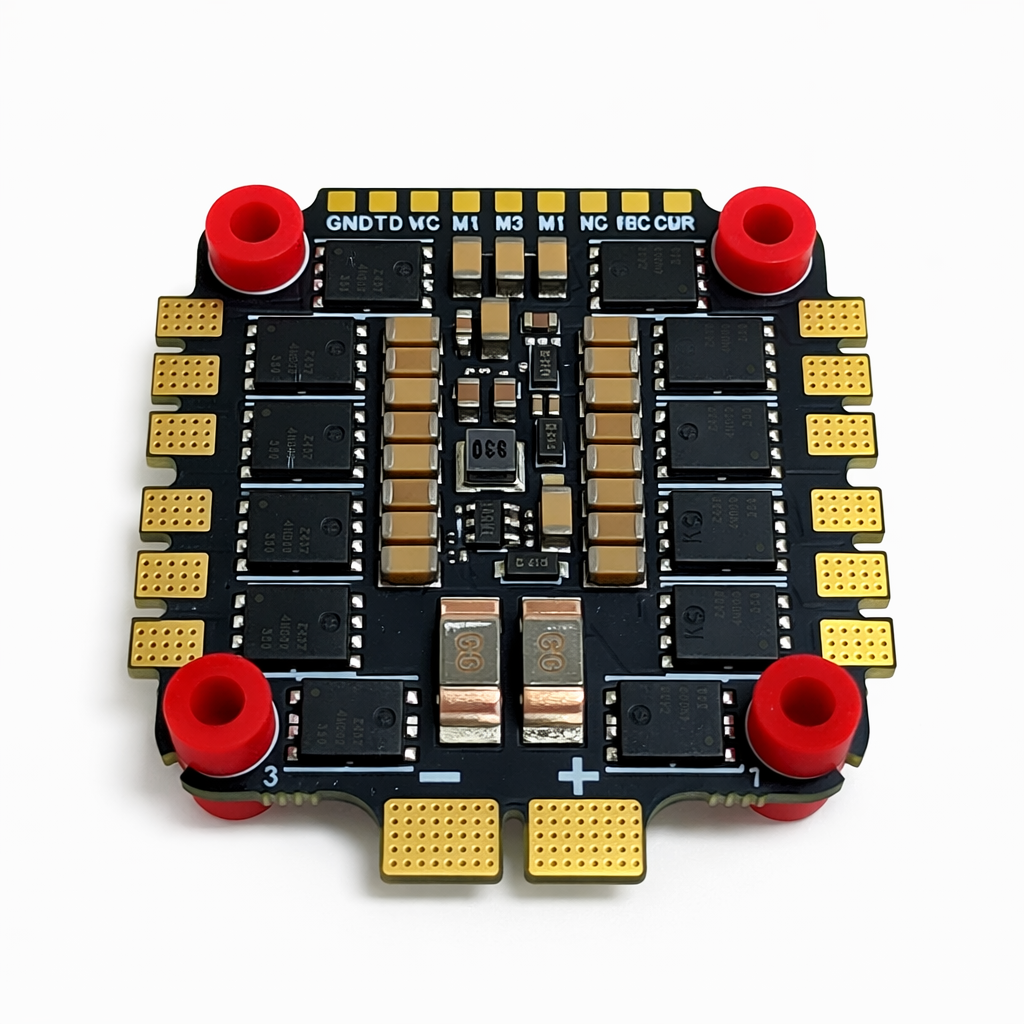

PY-ENERGY BLS 65A 4-in-1 ESC
$500.00
| ESC Model | PY-ENERGY BLS 65A 4-in-1 ESC |
| Product model | BLS 65A 4-in-1 ESC |
| Input voltage | 3-8S |
| MCU | EFM8BB51F16G |
| Support firmware | BLHeli_S E_X_40 (Default);Bluejay E_X_40 |
| Driver chip | CSC2388/SA6288/FD6288 |
| Continuous current | 65A |
| Instantaneous current | 75A |
| Standby current | <15mA |
| BEC output | NO BEC |
| TVS protective diode | YES |
| ESC/Motor Protocol | PWM、 Oneshot125、 Oneshot42、Multishot、Dshot150、Dshot300、Dshot600 |
| Ammeter ratio | 100 |
| PCB Color | Matte black |
| Fixed hole spacing | 30.5*30.5mm |
| Size(L*W*H) | 45.5*41.5*6.4mm |
| Weight(g) | 15g |
| Package Includes |
•F405 FC + BLHeli_32 4-in-1 ESC
•60A Continuous / High-efficiency power delivery
•30.5×30.5mm mounting • 6S compatible
