Performance
6110–7210 MHz, 64 channels (8×8)
uucck 75DF 7.2 GHz Video Receiver with OLED
$129.00
Skip to product information
uucck 75DF 7.2 GHz Video Receiver with OLED
$129.00
No batteries
DDP · 27 EU countries
Ships from Guangzhou
USD · retail checkout
Small orders · PayPal & cards
The uucck 75DF is a 7.2 GHz analog receiver with OLED band/channel display, auto-scan, 64 channels, and −95 dBm sensitivity.
Product overview
The uucck 75DF is a 7.2 GHz FPV receiver with OLED channel display, auto-scan, and high sensitivity for long-range analog video.
Key features
- Key capability6110–7210 MHz, 64 channels (8×8)
- Key capabilityOLED shows band, channel, RSSI
- Key capabilitySNR ≥38 dB; FM/PLL, IF 480 MHz
- Sample markingKP-RX4861 front / RX_75DF(V2.1) back
Core advantages
Performance

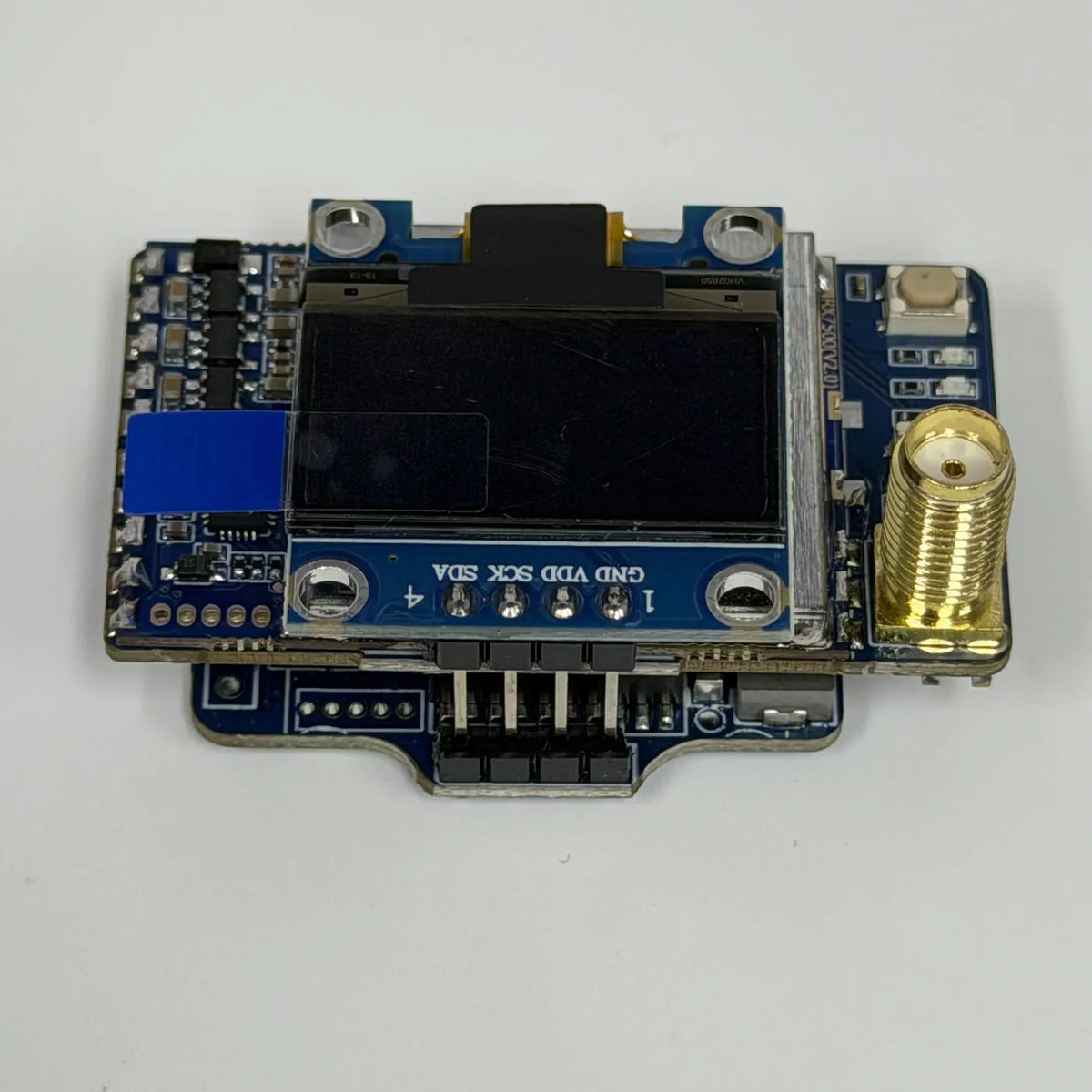

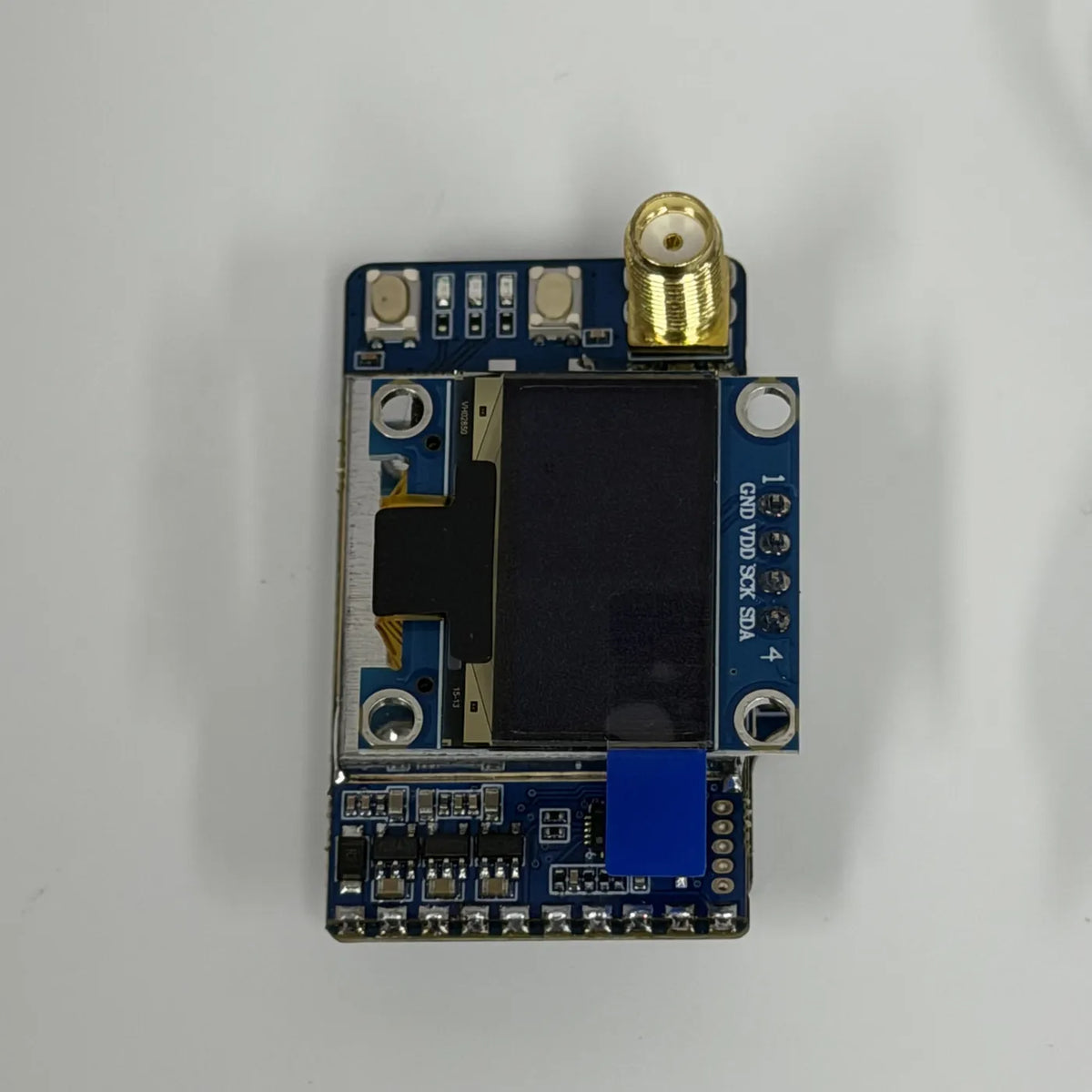

OLED shows band, channel, RSSI
Performance
SNR ≥38 dB; FM/PLL, IF 480 MHz
Performance
Sample marking: KP-RX4861 front / RX_75DF(V2.1) back
Target applications
- Ground stations and goggles receiving 6110–7210 analog downlinks.
- Embedded DVR / monitor modules that need CVBS baseband video.
- Relay and companion receivers paired with uucck VTX on matching channel plans.
Technical specifications
RF
Video
Power & environment
Compatibility & pairing
Pair with uucck AL7210 6.1–7.2 GHz VTX.
Setup & safety
Use OLED menu for band/group; allow warm-up time on cold days per analog PLL behavior.
Regulatory notice
Transmit only on frequencies and power levels approved in your country. Always connect a matched antenna before applying power. uucck modules are intended for licensed hobby and professional users who comply with local RF rules.
FAQ
Who manufactures uucck 75DF?
uucck designs the product lineup and sells 75DF at uucck.com. Technical data is verified against uucck engineering records (2026-10-17).
Analog or digital video?
This is analog FM CVBS — compatible with classic FPV goggles and monitors, not DJI HD digital links.

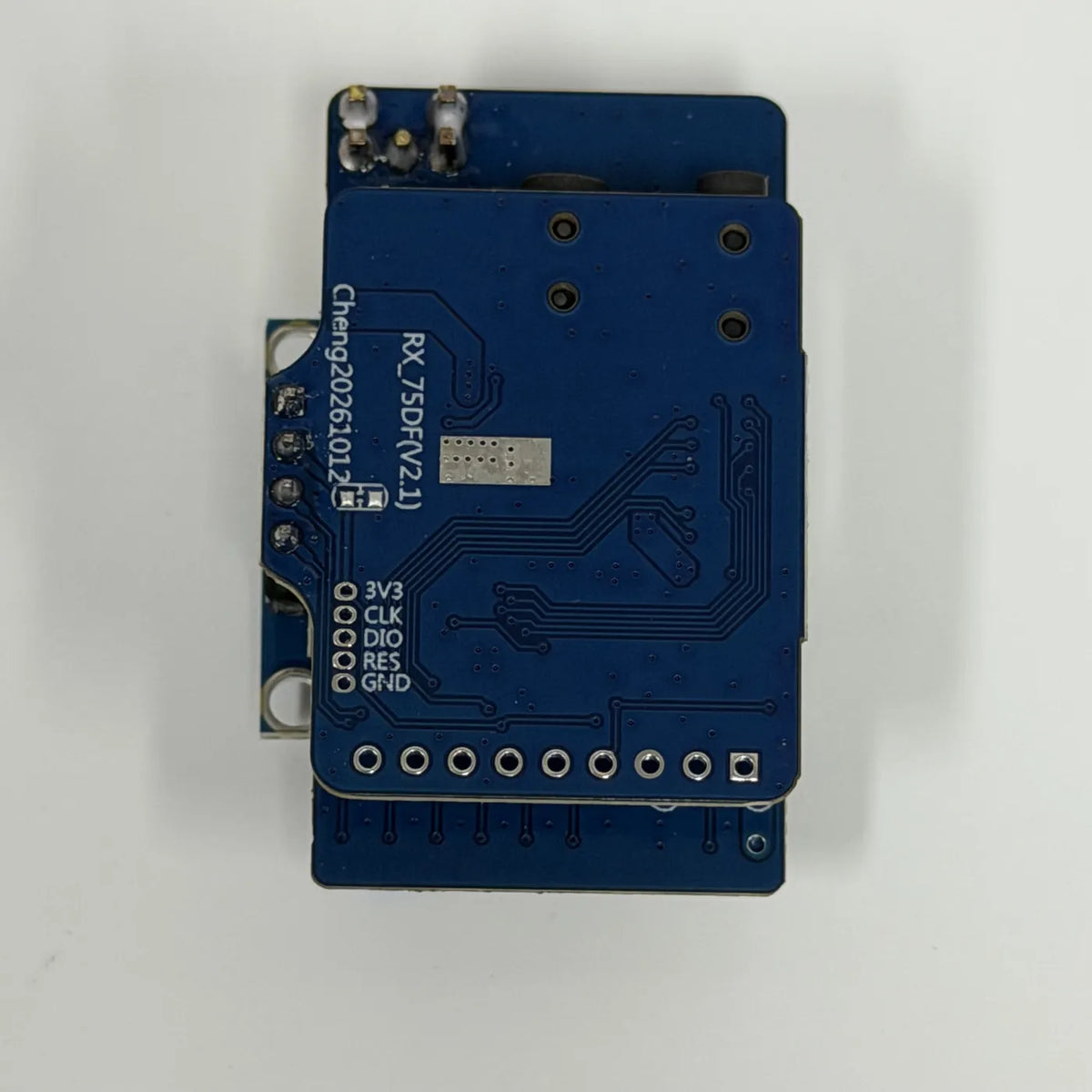

What PCB marking was verified on samples?
KP-RX4861 front; RX_75DF(V2.1) back Cheng20261012. Storefront SKU remains uucck 75DF.
