uucck RX5808 5.8 GHz Video Receiver Module (96 CH)
$79.00
Skip to product information
uucck RX5808 5.8 GHz Video Receiver Module (96 CH)
$79.00
No batteries
DDP · 27 EU countries
Ships from Guangzhou
USD · retail checkout
Small orders · PayPal & cards

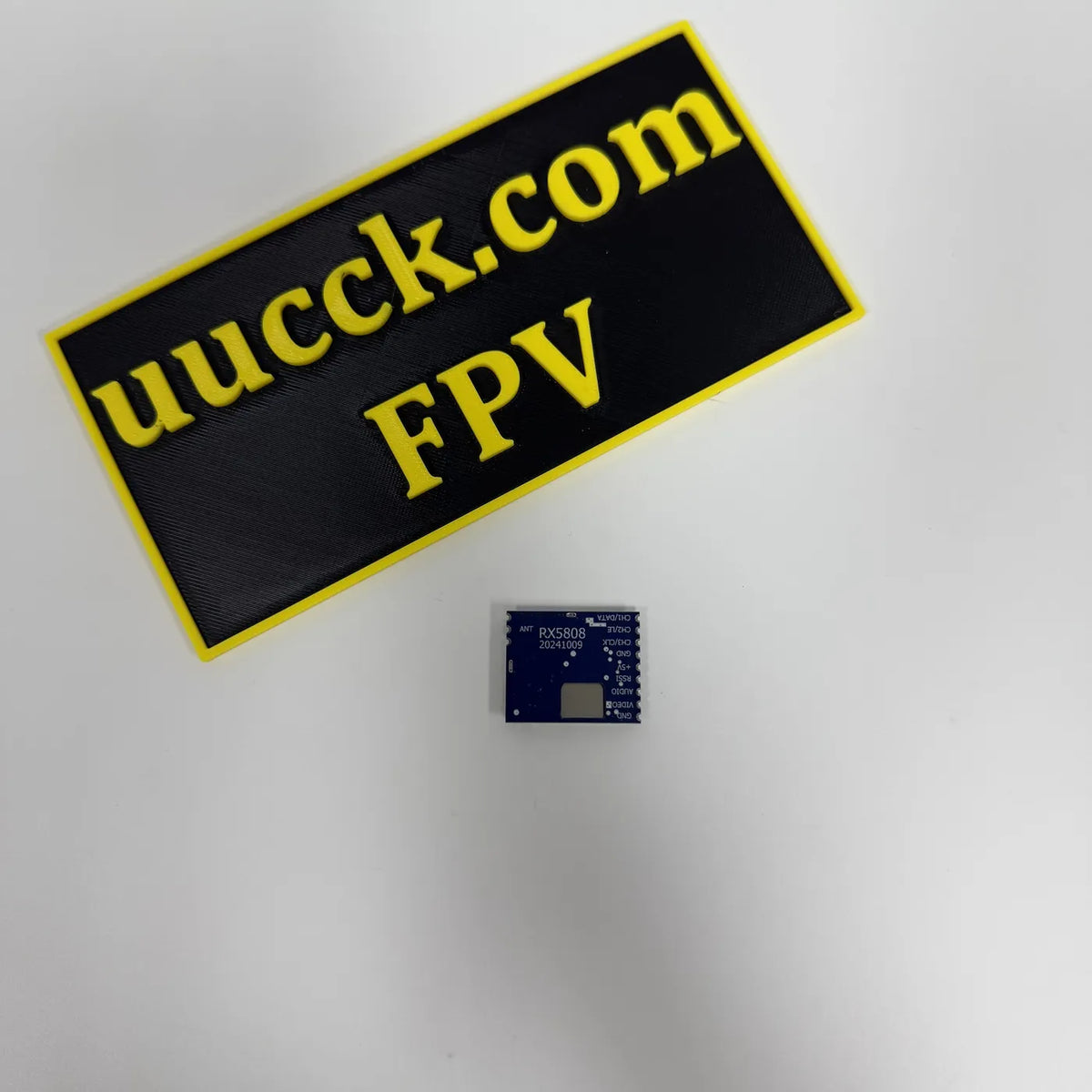

The uucck RX5808 is a classic 5645–5945 MHz receiver module with 96 channels, IPEX antenna, 5 V input, and CVBS output for compact FPV builds.
Product overview

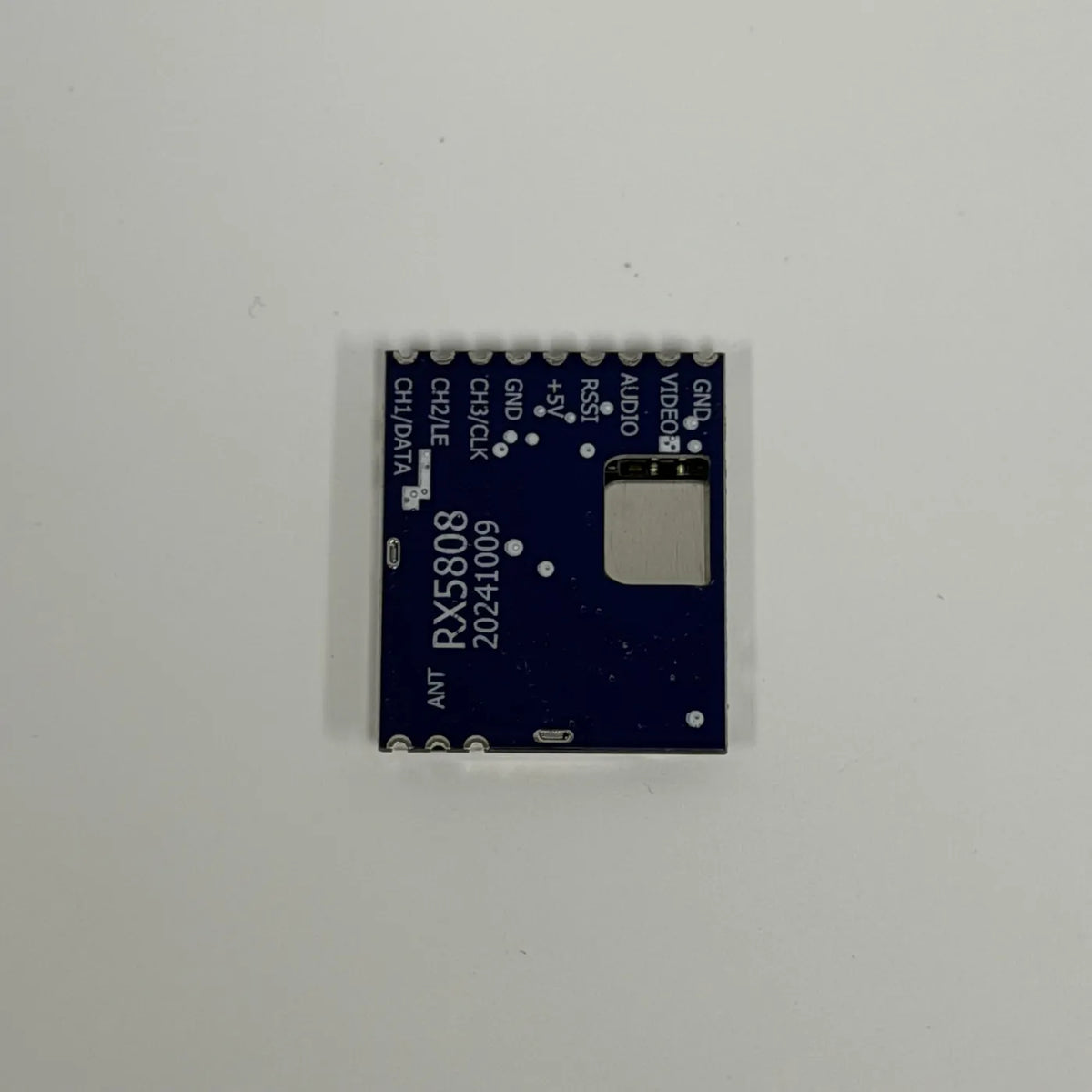

The uucck RX5808 is a classic 5.8 GHz 96-channel micro receiver module with IPEX antenna port and CVBS video for goggles and DVR boards.
Key features
- Key capability5645–5945 MHz race band coverage
- Key capability96 channels
- Key capability−95 dBm sensitivity
- Key capability28 × 23 × 3.5 mm, 4.1 g; 5 V input
Core advantages
Performance
96 channels
Performance
−95 dBm sensitivity
Performance
28 × 23 × 3.5 mm, 4.1 g; 5 V input
Target applications
- Ground stations and goggles receiving 5645–5945 analog downlinks.
- Embedded DVR / monitor modules that need CVBS baseband video.
- Relay and companion receivers paired with uucck VTX on matching channel plans.
Technical specifications
RF
Video & power
Mechanical

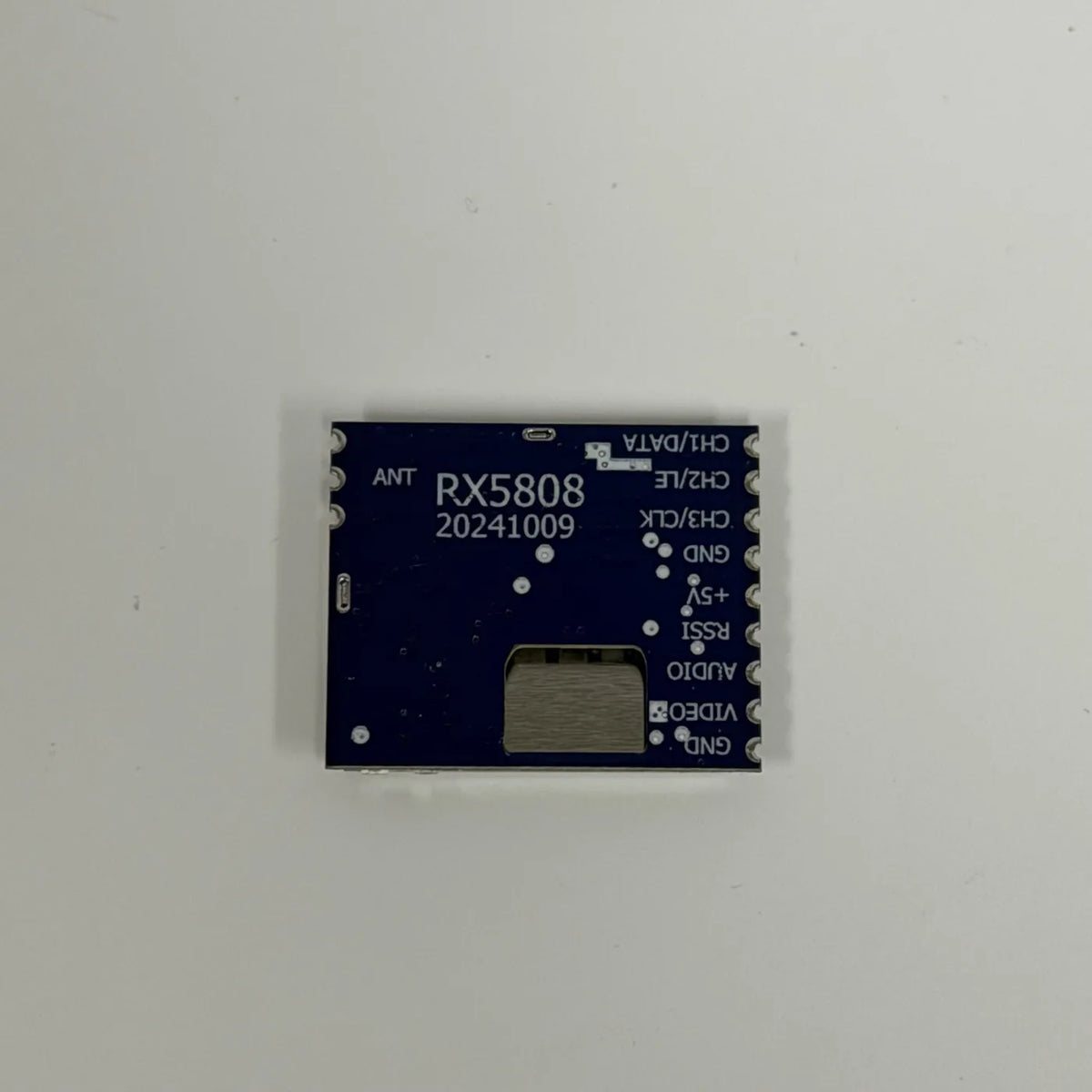

Pin functions (typ.)
Compatibility & pairing
Pair with uucck AL5805, AL5810, TX8000AC, ALPHA5, or ALV2.5W on standard 5.8 GHz channel tables.
Setup & safety
Use IPEX pigtail to SMA antenna; verify pinout before soldering to host PCB.
Regulatory notice
Transmit only on frequencies and power levels approved in your country. Always connect a matched antenna before applying power. uucck modules are intended for licensed hobby and professional users who comply with local RF rules.
FAQ
Who manufactures uucck RX5808?
uucck designs the product lineup and sells RX5808 at uucck.com. Technical data is verified against uucck engineering records (2026-10-17).
Analog or digital video?
This is analog FM CVBS — compatible with classic FPV goggles and monitors, not DJI HD digital links.
