uucck AL5805 4.9–6.0 GHz Video Transmitter (5 W)

Product overview

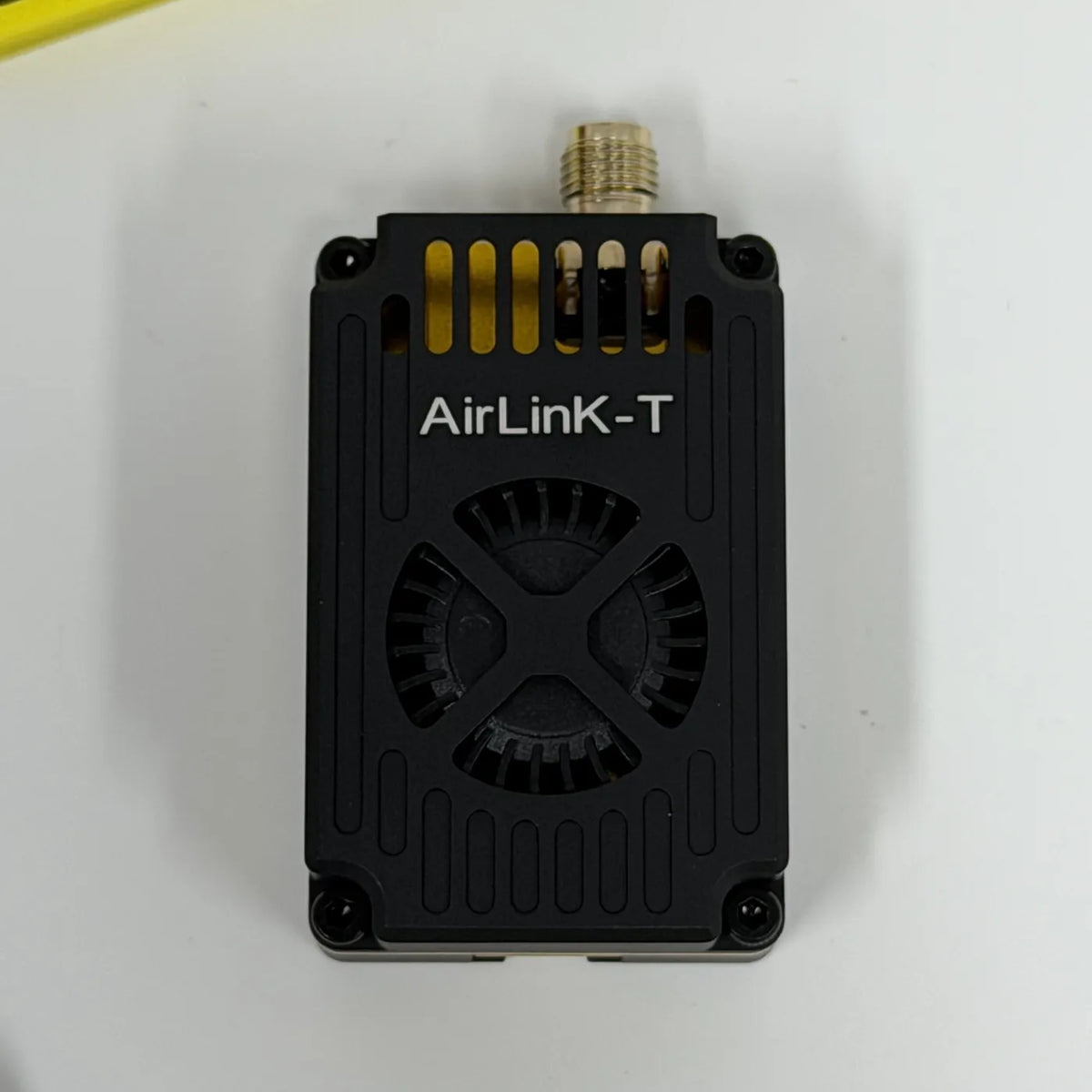

The uucck AL5805 is a compact 96-channel 4.9–6.0 GHz VTX rated to 5 W with IRC Tramp, turbine fan cooling, and calibrated power steps.

Key features

• Key capability4875–6060 MHz full band table including 4.9 G extension
• Key capability96 CH across 12 band groups (A–U per datasheet)
• Key capabilityPIT / 25 / 200 mW / 1 W / 5 W

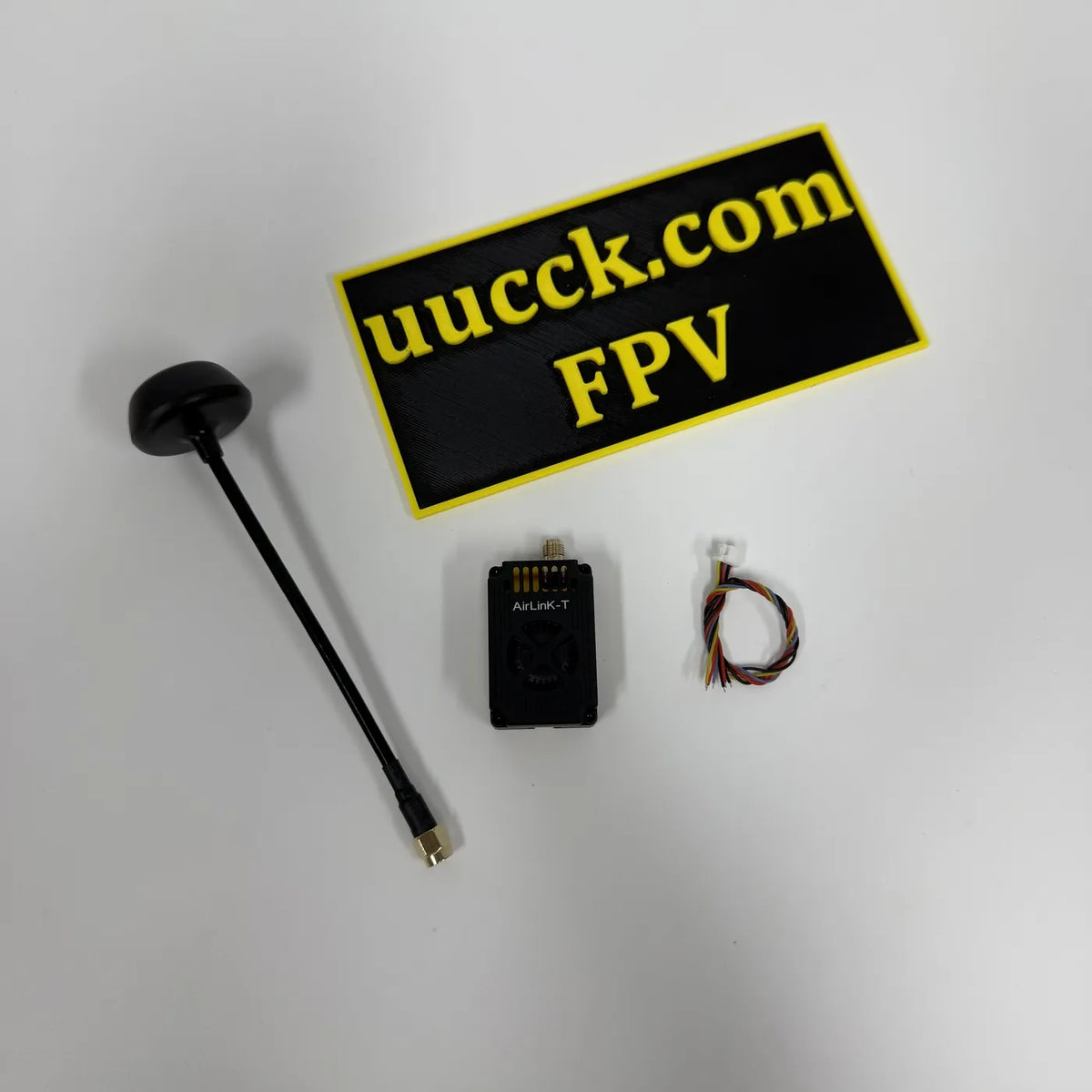

• Key capability44 × 28.6 × 14.7 mm, 25.3 g; AirLinK-T shell

Core advantages

Target applications

• Long-range analog FPV on 4875–6060 where extra link margin helps.
• Fixed-wing cruise and multirotor platforms (always comply with local RF limits).
• Professional payloads that rely on dependable CVBS video rather than HD digital.

Technical specifications

RF & channels

Power & video

Mechanical & environment

Compatibility & pairing

Pair with uucck KP-R4861 (4867–7210 MHz) or RX5808 when operating in overlapping 5.8 GHz channels.

Setup & safety

Antenna must be connected before transmit. RGB button: blue=band, red=channel, green=power; green solid = Pit Mode. Avoid excessive ESC noise on VBAT despite onboard filtering.

Regulatory notice

Transmit only on frequencies and power levels approved in your country. Always connect a matched antenna before applying power. uucck modules are intended for licensed hobby and professional users who comply with local RF rules.
